You want connections that last, save time, and fit any device. ZIF type technology, using a ZIF connector (Zero Insertion Force), helps you avoid cracked parts, speeds up assembly, and supports compact designs. YLS delivers reliable ZIF type cables and flexible flat cables trusted by engineers, makers, and industry leaders worldwide.
Key Takeaways
ZIF connectors prevent damage to pins and pads, ensuring your electronics last longer and remain reliable.
YLS flexible flat cables allow for quick, tool-free installation, saving you time and reducing the risk of mistakes during assembly.
Customizable YLS cables meet specific project needs, providing flexibility for various applications in electronics, automotive, and medical devices.

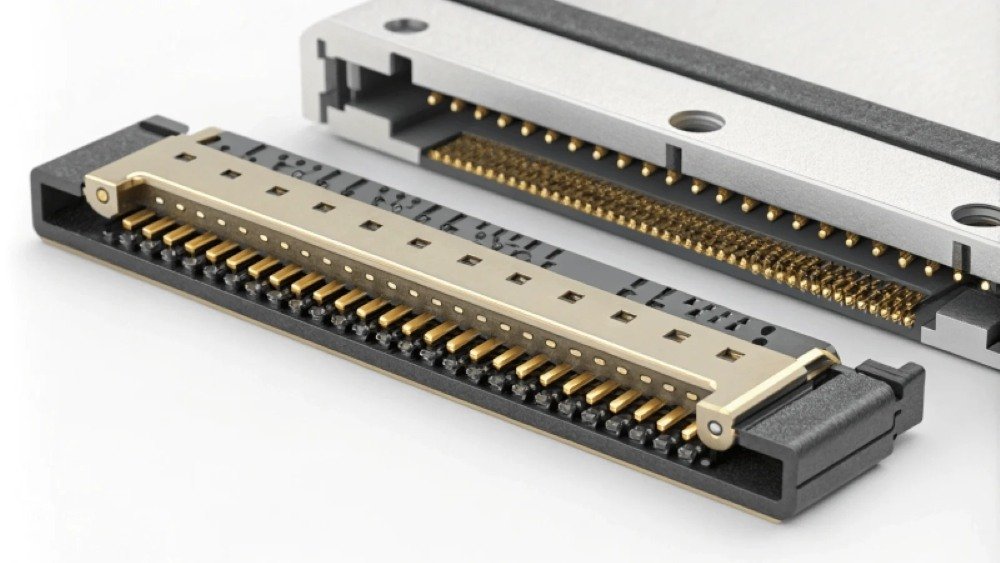

Reliable Connections with ZIF Connector (Zero Insertion Force)
Prevents Pin and Pad Damage
You want your electronics to last. ZIF connector (Zero Insertion Force) technology helps you achieve that goal. When you use a ZIF type connector, you do not need to push or force the cable into place. This gentle approach protects delicate pins and PCB pads from bending or breaking. Devices that require frequent maintenance or upgrades benefit the most. You can remove and reinsert cables many times without worrying about mechanical fatigue or wear.
Here is how ZIF connectors compare to standard connectors:
Feature | ZIF Connector (Zero Insertion Force) | Standard Connector |
|---|---|---|
Insertion Force Required | Minimal | Moderate to High |
Risk of Pin/Pad Damage | Very Low | Higher |
Mating Cycle Rating | 5,000+ cycles | 500–1,000 cycles |
Mechanical Fatigue | Greatly Reduced | More Likely |
You can see that ZIF connectors eliminate stress on sensitive parts. This means your devices stay reliable, even with repeated use.
Consistent Performance in YLS Zif Cable
You need connections that work every time. YLS Zif cable delivers consistent electrical performance, even in demanding environments. Each cable uses gold-plated contacts to ensure stable signals and resist corrosion. The gentle insertion design allows you to connect and disconnect without damaging the cable or connector. YLS Zif cables support over 10,000 insertion cycles, making them ideal for prototypes, repairs, and high-volume production.
ZIF connector (Zero Insertion Force) technology also achieves stable contact pressure. This overcomes resistance from contact films and keeps your signal strong. Engineers use ZIF type connectors in medical devices, industrial automation, and consumer electronics because they trust the reliability.
Tip: Choose YLS Zif cable for your next project if you want a connection that lasts and performs under stress.
Easy Assembly and Flexible Integration
Tool-Free Installation with YLS Flexible Flat Cable
You want to save time and avoid mistakes during assembly. YLS flexible flat cables make this possible. You do not need special tools or soldering skills. You simply slide the cable into the ZIF type connector and lock it in place. This process takes only a few seconds. You reduce the risk of damaging your components. You also make repairs and upgrades much easier. If you need to remove the cable, you just unlock the connector and pull the cable out. This tool-free approach helps you work faster and with more confidence.
Note: Many engineers and makers choose YLS flexible flat cables for their easy handling and reliable fit. You can use them in tight spaces or complex layouts without worry.
Fast Prototyping and Rework Capability
You often need to test new ideas or fix designs quickly. YLS supports you with rapid prototyping services. You can request custom cable lengths, pin counts, or special layouts. YLS can deliver samples in as little as 48 hours. This speed helps you move from concept to working prototype without delay. If you need to change your design, you can easily swap out cables. The ZIF connector (Zero Insertion Force) allows you to rework connections many times without wear. You save both time and resources during development.
Benefits you get with YLS:
Quick installation and removal
Custom cable options for any project
Reliable connections for repeated testing
You gain flexibility and efficiency for every stage of your electronic design.
Versatility for Modern Electronics
Adaptable to Displays, Cameras, and Sensors
You need solutions that work across many devices. ZIF connector (Zero Insertion Force) technology gives you that flexibility. You find these connectors in smartphones, laptops, and cameras. They connect displays in smartphones, making assembly fast and safe. In laptops, they link touchpads and keyboards to the main board. Cameras use them for display connections, which makes repairs and upgrades simple.
You can use ZIF type connectors for:
Smartphone displays and touch panels
Laptop keyboards and trackpads
Camera modules and sensors
You get quick connections and less risk of damage. This helps you build and repair devices with confidence.
Custom Solutions for Automotive, Medical, and Consumer Devices
You often need cables that fit special requirements. YLS offers custom pitch, length, and pin configurations for your projects. You can request ultra-thin flexible flat cables for displays behind glass panels. You can choose multi-pin cables for smart home devices, like temperature sensors or smart speakers. YLS also provides compact and durable solutions for medical equipment. In automotive systems, these cables fit into tight spaces and handle repeated use.
Tip: Custom YLS cables help you meet industry standards and unique design needs.
Here is how ZIF connectors compare to other connector types:
Feature | ZIF Connectors | Other Connector Types |
|---|---|---|
Insertion Force | Zero insertion force | Varies (often requires force) |
Flexibility | High flexibility for various applications | Limited flexibility |
Compactness | Excellent for miniaturization | Varies (often bulkier) |
Risk of Damage | Low risk of incorrect insertion | Higher risk of damage |
Suitability for High Voltage | Not suitable | Often suitable |
You see that ZIF connectors support compact designs and reduce the risk of damage. You can use them in many industries, from consumer electronics to automotive and medical devices.
You gain reliable, easy-to-assemble, and versatile connections with ZIF connectors. YLS Zif cable and flexible flat cable solutions meet global standards and deliver proven results:
Description | |
|---|---|
UL | Safety and performance |
RoHS | Restricts hazardous substances |
You future-proof your projects.
You reduce downtime and improve sustainability.
FAQ
What is a ZIF connector?
You use a ZIF connector to connect cables without force. You avoid damaging pins or pads. This makes assembly safe and easy.
How do you install a YLS Zif cable?
You slide the cable into the connector. You lock it with a lever. You do not need tools or soldering.
Can you customize YLS flexible flat cables?
Yes! You choose pitch, length, and pin count. YLS creates cables for your exact project needs.
