Choosing custom ribbon cables for home electronics

You plug in custom ribbon cables and hope your electronics work. But you might hear weird sounds or see screens that flicker. Sometimes, your device keeps restarting and will not turn on. These problems can happen if you use the wrong custom ribbon cables. Signal glitches, power noise, and startup failures may occur. To avoid these problems, check compatibility, safety, and how easy it is to install. Picking the right custom ribbon cables saves time. It also helps your electronics work well.

Key Takeaways

• Pick ribbon cables that fit your device’s connector type. Make sure the pin count matches too. This helps you install them easily. It also makes sure they work right.
• Look at voltage and current ratings before you use the cables. This keeps your device safe. It stops overheating or damage from happening.
• Use short and bendable cables for less signal noise. These cables fit better in small spaces. They are good for tiny electronics.
• Check the cable insulation and shielding. Look at color coding too. These things help block interference. They also make connections simpler.
• Test your ribbon cables before you use them. This helps you find problems early. It stops your device from failing.

Device Requirements

When you start picking a ribbon cable for your project, you need to match it to your device’s needs. Let’s break down what you should check before you buy or order custom ribbon cables.

Connector Types

You will find many connector types in home electronics. Each one fits a different use. Picking the right connector makes your installation easier and helps your device work better. Here’s a quick look at the most common types:

Connector Type	Description and Use Case
IDC Connectors	Used for ATA cables and many ffc applications. These let you press the ribbon cable onto forked contacts. They fit header pins spaced 2.54 mm apart.
D-subminiature	Found on serial and printer ports. These often use crimp or solder types, not IDC.
Micro ribbon	Used for printer ports and SCSI ports.
DIN 41612	Used for Eurocard bus connections.
PCB Transition Headers	Soldered right onto PCBs, with two rows of pins.
DIL Headers	Used for connecting to ICs or stripboards.

Tip: The right connector type makes your ribbon cable easy to install and keeps your device running smoothly.

Connector choice affects more than just fit. It also impacts how easy your device is to set up, how fast it can send data, and how well it blocks noise. Some connectors, like those that support the Matter standard, help your devices work together, even if they come from different brands. Others focus on making connections strong and reliable, which is key for high-speed or high-power applications.

• Connectors join wires and circuits so your device can send power and data.
• Some connectors are made to save space or reduce power use.
• Good connector design helps block electrical noise and keeps your device working well, even in tough spots.

Pin Count

You need to know how many pins your ribbon cable should have. The pin count tells you how many separate wires run through the cable. This number must match your device’s connectors.

Here’s a table to help you see what pin counts are common and where you might use them:

Typical Pin Count Range	Common Connector Types	Typical Applications in Consumer Electronics and Related Fields
4 to 6 pins	4-pin, 6-pin IDC connectors	Simple microcontroller connections, serial interfaces
10 to 26 pins	10-pin, 14-pin, 16-pin, 20-pin, 26-pin IDC connectors	LCD screens, GPIO headers, signal routing, in-system programming
34 to 50 pins	34-pin, 40-pin, 50-pin IDC connectors	Floppy drives, IDE hard drives, SCSI interfaces
60 to 80 pins	60-pin, 64-pin, 80-pin IDC connectors	Custom data buses, complex embedded systems

Most home electronics use ribbon cables with 4 to 64 pins, but some special devices need up to 80 pins. Odd numbers are rare because most connectors use even pins.

Pin count also affects how well your signals travel. If you have lots of pins, you need to plan which pins carry power and which carry signals. Placing ground pins between signal pins helps cut down on noise and keeps your device working right. If you use a flexible flat cable or ffc with many pins, make sure you group signal and ground pins the right way.

Voltage and Current

You must check the voltage and current your application needs. Most ribbon cables for home use can handle up to 300V. The insulation, not the wire size, sets this limit. For current, the wire gauge matters. A 28 AWG strand can carry about 1.4A, while a 26 AWG strand can handle up to 2.2A. These numbers change if your cable is long or in a hot spot.

• If you push too much voltage, the insulation can break down. This can cause shorts or even fires.
• Too much current makes the cable heat up. Over time, this can melt the insulation or damage your device.
• Always check the ratings for your ribbon cable and connectors. If you use a flat flexible cable or ffc, look for UL or CE marks for safety.

Note: Never use a ribbon cable above its rated voltage or current. This keeps your device safe and helps it last longer.

Cable Length and Flexibility

The length and flexibility of your ribbon cable matter a lot, especially in tight spaces. For most home electronics, you should keep ribbon cable runs under 50 cm (about 20 inches) if you want to keep signals clean and strong. If you need a longer cable, you may need special designs or terminations.

• Shorter cables keep signals sharp and reduce noise.
• If you use a flexible flat cable or ffc, you can bend and twist it to fit inside small devices like laptops or game consoles.
• Flexible cables make installation easier. You can route them around corners or through tight spots without breaking them.
• Good flexibility also means your cable will last longer, even if your device moves or vibrates.

Flexible flat cable and ffc are built to handle lots of bending and folding. This makes them perfect for compact devices where space is tight. They also stand up to heat, cold, and moisture, so your device stays reliable.

Tip: Choose a cable that bends easily if your application needs frequent movement or fits into a small case.

Ribbon Cable Specifications

Pitch and Spacing

Pitch is the distance from the center of one wire to the center of the next in a ribbon cable. You will see pitch measured in millimeters or mils (thousandths of an inch). The most common pitch for home electronics is 1.27 mm (50 mils). This spacing keeps the wires close but not too close.

When you choose pitch and spacing, you control how signals travel through your ribbon cable. If the wires sit too close together, you might get crosstalk. Crosstalk means signals jump from one wire to another, causing noise or glitches. Here’s what you need to know:

• Pitch and spacing set the impedance between wires. This affects how much crosstalk or interference you get.
• A ground-signal-ground pattern on a 1.27 mm pitch can keep impedance near 100 ohms. This helps control crosstalk.
• You can add ground wires between signal wires to cut down on noise.
• If you use a tighter pitch without enough grounding, you risk more crosstalk and signal problems.
• For high-speed data, keep analog and digital signals apart and use ground wires to separate them.
• Shielded ribbon cables with twisted pairs and good grounding can block noise and keep your signals clean.

If you want your flat flexible cable or ffc to work well in a noisy environment, pay close attention to pitch and how you arrange the wires.

Wire Gauge

Wire gauge tells you how thick each wire is inside your ribbon cable. You will see this as AWG (American Wire Gauge) numbers. Lower numbers mean thicker wires. Thicker wires carry more current and stay cooler.

Here’s why wire gauge matters:

• Ampacity is the max current a wire can handle before it gets too hot.
• More current means more heat. If the wire gets too hot, the insulation can melt or break down.
• Thicker wires (like 22 AWG) carry more current and lose less signal over long distances. These work well for high-speed or long runs.
• Thinner wires (like 28 AWG) are more flexible and fit better in tight spaces. They work best for short runs or where you need the cable to bend a lot.
• If you bundle many wires together or use the cable in a hot place, you need to lower the current to keep things safe.

Always match the wire gauge to your device’s needs. If you pick the wrong size, you risk overheating, damage, or even fire. Flexible flat cable and ffc options let you choose the right gauge for your project, so your custom ribbon cables stay safe and last longer.

Insulation and Material

The insulation around each wire keeps electricity from leaking out and protects the wires from damage. Most ribbon cables use copper wires because copper carries electricity well. The insulation can be made from different materials, each with its own strengths.

Common insulation materials include:

• PVC (Polyvinyl Chloride): This is the most popular choice. It’s cheap, flexible, and works for most home electronics.
• PTFE (Teflon): This handles high heat and chemicals. You might see this in cables that need to bend a lot or work in tough spots.
• Polyethylene: This material has low signal loss and sometimes shows up in special cables.
• Thermoplastic elastomers: These give extra flexibility and can handle more stress.

If you need a cable that bends a lot or faces heat, look for insulation like PTFE. It keeps your ribbon cable safe and working, even when things get rough. The right insulation stops the cable from wearing out too fast and keeps your electronics safe from shorts or fires.

Color Coding

Color coding makes it easy to connect your ribbon cable the right way. Most cables have a red stripe on one edge. This stripe lines up with pin 1 on your connector. You can spot the right wire at a glance.

Why does color coding matter?

• It stops you from plugging the cable in backward.
• You can find the right wire fast when you need to fix or change something.
• It helps you keep track of wires in big projects with lots of connections.

Here are some best practices for using color coding:

1. Always check your connections before turning on your device.
2. Use a tester to make sure each wire goes to the right spot.
3. Label both ends of the cable so you know which wire is which.
4. Follow standard color codes for safety and easy troubleshooting.
5. Do a final check against your wiring diagram before you power up.
6. Use colored ties or markers to keep things organized.

Good color coding saves time and keeps your electronics safe. It also makes fixing problems much easier.

Shielding and EMI

Electromagnetic interference (EMI) can mess with your signals. Shielding helps block this noise. Not every ribbon cable needs shielding, but it’s important if your device sits near other electronics or in a noisy spot.

Types of shielding you might see:

• Foil shields: These wrap the whole cable and block most noise. They work well in places with moderate interference. They can tear if you bend the cable a lot.
• Braid shields: These use woven metal strands. They last longer and handle bending better, but don’t block as much noise as foil.
• Spiral wrapped shields: These are great for flexible cables. They protect against EMI and don’t tear when you bend the cable.

For most home electronics, unshielded cables work fine. If you have lots of interference, pick a shielded cable and make sure your connectors match the shield. Always ground the shield properly to get the best protection.

If you use a flexible flat cable or ffc in a spot with lots of noise, shielding can keep your signals clear and your device running smoothly.

Custom Ribbon Cables Features

Data vs Power

You must pick the right ribbon cable for each job. Some cables send data, and some move power. Data cables need to keep signals clean and clear. If you use the wrong cable, noise can mess up your device. Data cables usually have thin wires and close spacing. These work best for fast and clear signals. Power cables need thick wires to carry more current. Thin wires can get hot and cause problems. Using a data cable for power can be dangerous. It might overheat or even start a fire. Always check the specs before you choose a cable. Make sure your cable matches what you need, whether it is for data, power, or both.

Environmental Factors

Ribbon cables face many problems in your home. Here are some things that can hurt them:

• Rodents might chew on cables, so you may need covers.
• Rough surfaces can scratch and wear down the cable.
• Sunlight can break plastic, so UV covers help.
• Water can get inside and cause rust or shorts.
• Chemicals can damage the cable and wires.
• Voltage surges can harm cables if insulation is weak.
• EMI and radiation can mess with how cables work.

Moisture and heat are big problems for ribbon cables. Humidity can make insulation swell and get weak. High heat makes this happen faster. Over time, cables may crack or lose flexibility. You can protect cables by picking strong insulation. Use moisture barriers and seal connectors. Good cable routing helps your custom cable last longer.

Termination Options

There are different ways to connect ribbon cables. The most common is the IDC connector. You press the cable onto sharp contacts, and it locks. This way is fast and does not need special tools. You will see IDC sockets, transition headers, and D-Subminiature connectors in many devices. Other ways include crimp connectors and soldering to a board. Crimping holds tight, and soldering is good for permanent connections. Ribbon cables are flat, so they are easy to install and save space. For most home electronics, IDC is the best choice. It is simple and does not cost much.

Sourcing and Customization

Supplier Selection

Picking the right supplier for your ribbon cable is important. You want a company that makes good products and keeps promises. Here’s a table to help you compare different suppliers:

Criteria Category	What to Look For
Certifications	ISO 9001, UL, RoHS, REACH, IPC/WHMA-A-620
Quality Verification	Factory checks, machine testing, in-house QA, outside reports
Supplier Reputation	Customer feedback, repeat orders, on-time shipping
Additional Considerations	Years in business, help with custom designs, material tracking, fair prices, quick delivery
Prototyping & Testing	Willing to give samples and help with testing
Communication	Quick replies and clear information

Always check if the supplier has the right certifications. Ask for samples before you buy a lot. Good suppliers help you test cables and answer your questions fast. They also have good reviews and follow safety rules.

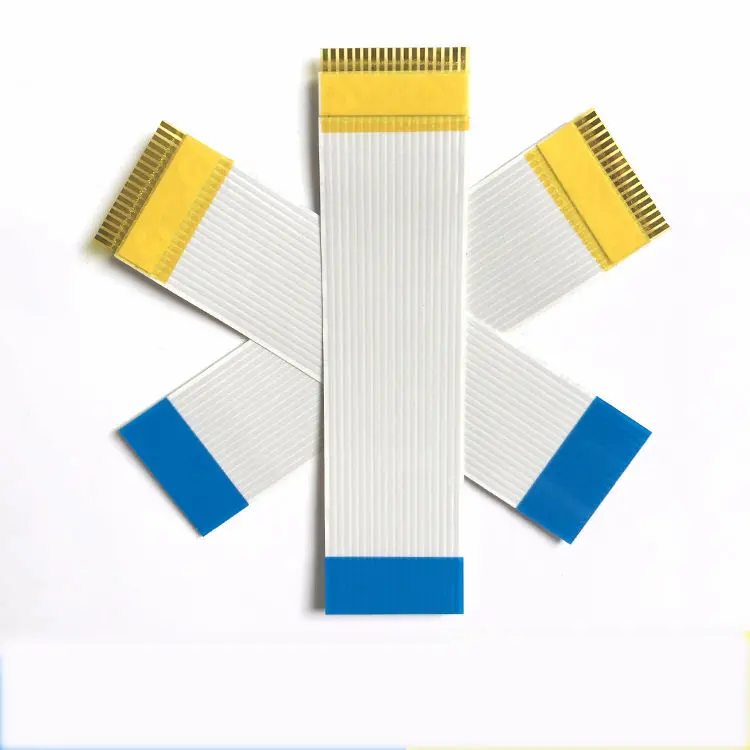

Custom FFC Cable Options

If you need a custom ffc cable, you have many choices. You can pick the length, pitch, and what covers the wires. Some cables use gold-plated copper for better connections. Others use tin to save money. You can choose insulation that handles heat or water. Custom ribbon cables can also be folded in special ways, like Z-shapes or coils, to fit small spaces. Here’s a table of options:

Customization Parameter	Available Options
Length	Standard or custom sizes
Plating	Tin or gold-plated copper
Pitch	0.5 mm for tight, 1.0 mm for strong
Insulation	PET, high-temp materials
Shielding	Aluminum, silver epoxy, drain wire
Strain Reliefs	Overmolded, built-in
Connector Types	Cable-to-cable, cable-to-board
Pinout	One-to-one, reverse
Folding Styles	Accordion, coil, Z-fold, custom bends

With these choices, you can make a custom ffc cable that fits your device just right.

Samples and Testing

You should always test a ribbon cable before using it. Testing helps you find problems early. Here are some tests you can do:

• Electrical continuity test checks if all wires connect right.
• Hipot test looks for insulation problems using high voltage.
• Milliohm test checks for very low resistance, which matters for grounding.
• Pull test checks if the cable and connectors stay together when pulled.
• Flex test bends the cable many times to see if it lasts.

Tip: Always ask your supplier for a sample and do these tests before using a new custom ribbon cable in your project.

Common Mistakes

Compatibility Issues

Not all ribbon cables work the same way. Many people make mistakes with Pin 1. You must match Pin 1 on the cable to Pin 1 on both devices. If you do not, your device might not work. Right angle connectors can make things harder. Sometimes, you need to turn a connector or twist the cable. This helps the wires line up right. If you skip these steps, the wiring can be backwards. The cable might not fit at all. Here are some problems you might see:

1. Pin 1 does not match between cable and device.
2. Connector is turned the wrong way, especially with right angle connectors.
3. You need to twist or fix cables to fix wiring mistakes.
4. You might have to move connectors or change your board.
5. Cable is too wide or too short for your project.

Always measure your cable and check its type before you buy a new one. Put the cable in the same way as the old one to avoid problems later.

Ignoring Ratings

You might want to save money and pick a cable that looks the same. But if you ignore voltage and current ratings, it can be dangerous. If the cable cannot handle enough voltage, the insulation can break. This can cause shorts or even fires. Too much current makes the cable hot. The insulation can melt, and your device can break. For example, plugging too many things into a power strip can cause a fire. Always check the ratings for your project. The right cable size keeps your system safe.

• Cables with too much current get hot and can burn.
• Cables that are too small wear out fast and can break.
• Good conductor material helps your device work better.
• Safety depends on the right cable and certifications.

Never use a ribbon cable for more than it is made for. Your project needs the right cable to stay safe.

Skipping Testing

You might feel sure after you put in a new ribbon cable. But not testing is a big mistake. Testing finds problems before they hurt your device. If you do not test, you might miss a broken wire or bad connection. A simple test can show if every wire works. Flex tests show if the cable will last. Pull tests check if connectors stay on. If you skip these, your device might fail and you waste time.

• Always test cables before you finish your project.
• Use a tester to check every wire.
• Make sure connectors are tight and wires are in the right spot.

Testing your ribbon cable takes a few minutes and can save you hours of fixing problems later.

You want your home electronics to work without trouble. Start by following these steps when picking a custom ribbon cable:

1. Define what your device needs, like voltage, current, and signal protection.
2. Pick the right wire gauge, material, and number of conductors.
3. Choose insulation that stands up to heat, moisture, and wear.
4. Decide if you need shielding to block interference.
5. Add wraps or fillers for shape and strength.
6. Use strength members if your cable will bend or pull.
7. Select connectors and termination methods that fit your setup.
8. Think about the environment, like temperature and stress.
9. Check for safety standards such as UL or RoHS.
10. Customize length, color, and labeling for easy use.

Want to share your own tips or have questions? Drop a comment below! 😊

FAQ

What is the difference between ribbon cables and FFC cables?

Ribbon cables use round wires in a flat row. FFC cables use flat metal strips inside a plastic film. FFC cables bend more and fit tight spaces better. You often see FFC cables in laptops and printers.

Can I cut a ribbon cable to a shorter length?

Yes, you can cut most ribbon cables with scissors. Make sure you cut straight. After cutting, you may need to attach a new connector. Always double-check the pin order before you connect it to your device.

How do I know which side is pin 1 on my ribbon cable?

Look for a red or colored stripe on one edge of the cable. That stripe marks pin 1. Match this side to pin 1 on your connector. If you are not sure, check your device’s manual.

Do I need a shielded ribbon cable for my project?

You need shielding if your cable runs near noisy electronics or motors. Shielding helps block interference. For most home projects, unshielded cables work fine. If you see signal problems, try a shielded cable.
