When you specify ffc cables for your project, you need to focus on key details that match your device’s needs. You might face challenges like connector compatibility, signal integrity, and environmental protection. Here is a quick overview:
Issue Description | Solutions | |
|---|---|---|
Connector Compatibility | Incompatible connectors cause signal problems | Match pitch, use ZIF/LIF connectors, add strain relief |
High-Speed Signal Integrity | EMI and data loss at high frequencies | Use shielding, ground planes, smooth copper |
Environmental Protection | Moisture, vibration, heat can damage cables | Apply coatings, test for standards, bake boards |
Manufacturability | Skipping reviews leads to costly rework | Add test points, review for flex-specific processes |
You can avoid these issues by working with a trusted manufacturer like YLS, who offers custom solutions for your application.
Key Takeaways
Understand your application needs before selecting FFC cables. Consider space, conductor count, and environmental factors.
Match cable specifications to your device to ensure reliable performance. Check connector type, pin count, and voltage ratings.
Choose the right pitch and pin count for your FFC cables. Smaller pitches allow for more conductors in tight spaces.
Verify compatibility by testing cable fit and function with your device. Early testing prevents costly errors.
Work with a trusted manufacturer like YLS for custom solutions and support in specifying FFC cables effectively.
Specify FFC Cables: Key Steps
Identify Application Needs
You should start by understanding the specific requirements of your project before you specify ffc cables. Think about where and how you will use the cable. Ask yourself these questions:
What is the available space for the cable?
How many conductors do you need?
Will the cable face any sources of electromagnetic interference?
How long does the cable need to be?
Will the cable operate in extreme temperatures or harsh environments?
You must also consider the temperature range. Most ffc cables work best between -20°C and 80°C. If your application faces higher or lower temperatures, choose cables with special coatings or materials.
Tip: For sensitive or high-speed applications, select shielded cables to reduce electromagnetic interference.
YLS Flexible Flat Cable offers a wide range of pitch options, conductor counts, and shielding choices. You can request custom designs to fit unique spaces or challenging environments. This flexibility helps you specify ffc cables that match your exact needs.
Match Cable Specs to Device
Once you know your application needs, you must match the cable specifications to your device. This step ensures reliable performance and prevents costly mistakes. Follow these steps to specify ffc cables correctly:
Check the connector type and pitch on your device.
Confirm the number of pins or conductors required.
Measure the distance between connection points to determine the cable length.
Review the voltage and current requirements for your device.
Here is a table to help you understand why voltage and current ratings matter:
Specification Type | Importance |
|---|---|
Current Rating | Ensures the cable can safely carry the required electrical current, preventing overheating and damage. |
Voltage Rating | Indicates the maximum electrical potential the cable can withstand, preventing insulation failure and short circuits. |
If you mismatch cable specs with your device, you may face these problems:
Data transmission issues can slow down your device or cause instability.
Mechanical failure may occur if the cable does not fit or flex properly.
Incompatibility with connectors can make your device unusable.
You can avoid these risks by choosing a trusted manufacturer like YLS. YLS uses advanced manufacturing and quality assurance to deliver reliable Flexible Flat Cable solutions. You can also benefit from rapid prototyping and customization options, which help you specify ffc cables that fit your device perfectly.
Note: Always allow some slack near terminations and use reinforcement or adhesive backing to protect the cable from pull forces and abrasion.
Choosing YLS gives you access to advanced production, cost efficiency, and flexible design options. You can trust YLS to help you specify ffc cables for any application, from medical devices to automotive systems.
FFC Cable Specs for YLS Flexible Flat Cable
Pitch and Pin Count
You need to select the right pitch and pin count for your ffc flat flex cable. Pitch is the distance between the centers of two adjacent conductors. Pin count is the total number of conductors in the cable. YLS offers a wide range of options for flat flexible cable applications. See the table below for standard sizes:
Pitch Size | Pin Count |
|---|---|
0.4mm | Up to 96 |
0.5mm | Up to 96 |
1.0mm | Up to 96 |
1.25mm | Up to 96 |
A smaller pitch allows you to fit more conductors in a tight space. This is important for miniaturized devices. The table below shows how pitch size affects your design:
Aspect | Description |
|---|---|
Higher Pin Density | A smaller pitch, like 1mm, allows more electrical contacts in a limited space. |
Miniaturization | Needed for slim electronics such as tablets and wearables. |
Signal Integrity | Tighter pitches require precise manufacturing to avoid crosstalk and ensure reliable connections. |
Compatibility | 1mm pitch connectors are common in space-constrained devices. |
Connector Type
You must choose the right connector for your ffc flat flex cable. YLS supports many connector types, including:
BT224
D-subminiature
Micro ribbon
DIN 41612
PCB transition headers
DIL headers
When you select a connector, consider these factors:
Connector type (ZIF, LIF, etc.)
Pitch size
Number of contacts
Current rating
Temperature range
Mounting style
Durability and reliability
Cost
Cable Length and Thickness
You should match the cable length and thickness to your device’s needs. YLS ffc flat flex cable options include:
Specification | Options |
|---|---|
Cable Thickness | 0.1 mm to 0.5 mm |
Cable Length | 30 mm to 1000 mm or longer |
Thicker ffc flat flex cable can carry more current and resist stress. Thinner cables are more flexible and fit in ultra-slim devices. Shorter cables reduce signal loss and mechanical stress. Always follow the minimum bending radius, which is 5x to 10x the cable thickness, to protect the conductors.
Electrical and Environmental Ratings
You must check the electrical and environmental ratings for your ffc flat flex cable. YLS cables meet industry standards:
Specification | Value |
|---|---|
Current Rating | 3 Amps per Conductor |
Voltage Rating | 300VAC |
Temperature Rating | -55°C to +105°C |
Insulation Resistance | 20 Megaohms |
Dielectric Strength | 2500 Volts/Mil |
Flammability Rating | VW-1 |
Environmental Compliance | RoHS |
YLS follows ISO9001:2008 and RoHS standards. Every flat flexible cable undergoes strict electrical and flex testing. This ensures your ffc flat flex cable will perform reliably in demanding environments.

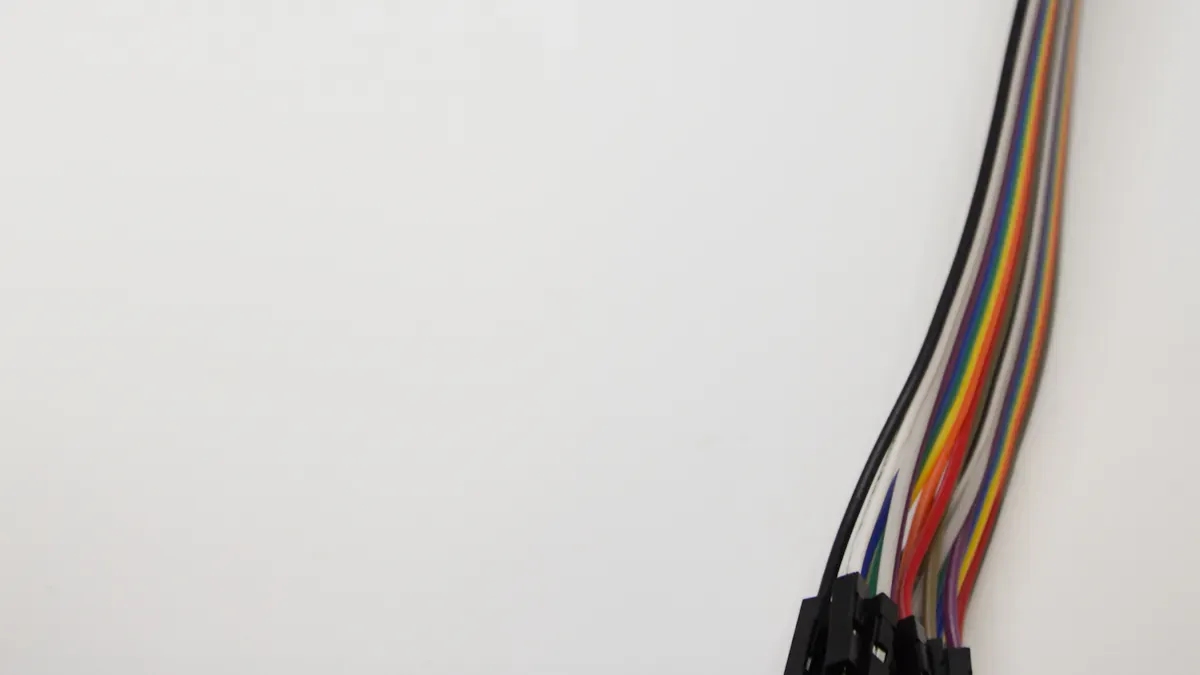

FFC Cable Measurement and Identification
Measuring Pitch and Pin Count
You need to measure pitch and pin count accurately to ensure your cable fits your device. Start by using a caliper or ruler with millimeter markings. Place the tool across the conductors and measure from the center of one conductor to the center of the next. This gives you the pitch value, such as 0.5mm or 1.0mm. Count the total number of conductors to determine the pin count. These measurements help you select the right ffc cable for your application.
Parameter | Definition | Impact on Performance |
|---|---|---|
Distance between centers of adjacent conductors | Smaller pitches allow higher density, ideal for compact devices. Larger pitches are easier to handle and suit industrial uses. | |
Pin Count | Total number of conductive traces in the cable | Higher pin counts support complex signals. Lower pin counts are simpler and cost-effective. |
Tip: Double-check your measurements before ordering. YLS offers fast sample turnaround, so you can test your cable fit quickly.
Identifying Connector Orientation
Connector orientation affects how you install and route your ffc cable. Look at the cable ends and note if the contacts face up or down. This determines how the cable connects to your device. Proper orientation ensures signal integrity and reduces stress during bending.
Aspect | Impact on FFC Cables |
|---|---|
Improved alignment | Ensures proper connection and signal integrity |
Enhanced routing adaptability | Helps with installation in complex layouts |
Stress reduction | Minimizes wear and tear on the cable |
Custom interfaces | Supports specialized applications |
Note: YLS can customize connector orientation for your project, making integration easier.
Verifying Compatibility
You must verify compatibility before final installation. Match the cable pitch, pin count, and connector orientation to your device’s requirements. Check the datasheet or sample against your device’s connector. Test the cable in your system to confirm fit and function. YLS provides sample cables within 48 hours, so you can validate integration quickly.
Callout: Always test your ffc cable with your device before mass production. Early testing prevents costly errors and ensures reliable performance.
Avoiding Specification Mistakes
Common Errors
You can prevent many problems by learning about common mistakes when specifying ffc cables. Many users choose cables based only on price or appearance. This can lead to early failure, poor signal quality, or even safety hazards. You should always check the cable’s specifications and match them to your device’s needs.
Here are some risks and costs you might face if you use the wrong cable:
Risk/Cost Factor | Description |
|---|---|
Early Failure | Inferior materials can cause cables to fail sooner than expected. |
Increased Downtime | Frequent replacements lead to device downtime and lost productivity. |
Higher Long-term Costs | Cheap cables may cost more over time due to repairs and labor. |
Other issues include poor signal quality, overheating, and legal non-compliance. Moisture can also cause corrosion and short circuits. Using economy cables may increase the risk of failure as time passes.
You can avoid these problems by working with a trusted supplier like YLS. YLS helps you solve connection challenges with practical designs and offers abrasion-resistant jackets for harsh environments. You get support for matching the right ffc cable to your system, which reduces the chance of mistakes.
Ensuring Compatibility
You need to follow best practices to ensure your ffc cable works with your device. Start by checking the connector’s rated mating cycles. Choose connectors that last at least 5,000 cycles if you expect frequent disconnections. Make sure the cable thickness matches the connector’s rating for proper clamping.
Use this table to guide your selection:
Best Practice | Description |
|---|---|
Check Mating Cycles | Select connectors rated for your expected usage. |
Verify Cable Thickness | Match cable thickness to connector specifications. |
Consider Termination Method | Choose surface mount for compactness or through-hole for strength. |
Review Manufacturer Datasheets | Focus on insertion force, contact resistance, and current rating. |
Plan for Future Upgrades | Pick connectors with extra contacts for future needs. |
You should always review datasheets and test samples before finalizing your design. YLS supports you with fast pilot runs, low minimum orders, and direct communication with project managers. Their products meet global certifications, so you can trust your cables will perform reliably.
Tip: Accurate specs and expert support help you avoid costly errors. Always confirm every detail before ordering.
You can specify FFC cables with confidence by following these best practices:
Choose cables that withstand repeated flexing and environmental stress.
Select quality materials and shielding for durability and signal integrity.
Use customization to solve space constraints and improve device performance.
Apply recommended bend radius values and inspect cables regularly.
YLS offers rapid prototyping and tailored solutions for flexible printed circuit and FFC cable needs. Use the checklist below for future projects:
Define your application requirements.
Select the correct length and pitch.
Evaluate temperature and environmental conditions.
Balance cost versus performance.
Company | Challenge | Results Achieved | |
|---|---|---|---|
Ford | Faster prototyping | Custom YLS FFCs | Reduced time and costs |
Siemens | Production efficiency | High-density YLS FFCs | Improved speed, efficiency |
Boeing | Precision and reliability | Shielded YLS FFCs | Increased safety, reduced time |
FAQ
What is the difference between FFC and FPC?
FFC stands for Flexible Flat Cable. FPC means Flexible Printed Circuit. You use FFC for simple, flat connections. You use FPC for complex circuits with etched traces. FFC is easier to specify for most wiring needs.
How do you measure FFC cable pitch?
You measure pitch by placing a ruler or caliper across two adjacent conductors. Start at the center of one conductor and end at the center of the next. The distance is your pitch, such as 0.5mm or 1.0mm.
Can you customize YLS FFC cables for unique projects?
Yes, you can request custom pitch, length, pin count, shielding, and connector orientation. YLS offers rapid prototyping and supports special requirements for medical, automotive, or consumer electronics applications.
What is the minimum bend radius for FFC cables?
You should follow a minimum bend radius of 5 to 10 times the cable thickness. This protects the conductors from damage and ensures long-term reliability.
How fast can you get FFC cable samples from YLS?
YLS provides sample FFC cables within 48 hours. You can test fit and function quickly before starting mass production.
