Robotics FFC Cable for Precision & Flexibility
Engineered for robotics joints, sensors, and motion systems—YLS FFC cables ensure signal stability, tight bend radius, and EMI control in dynamic environments.

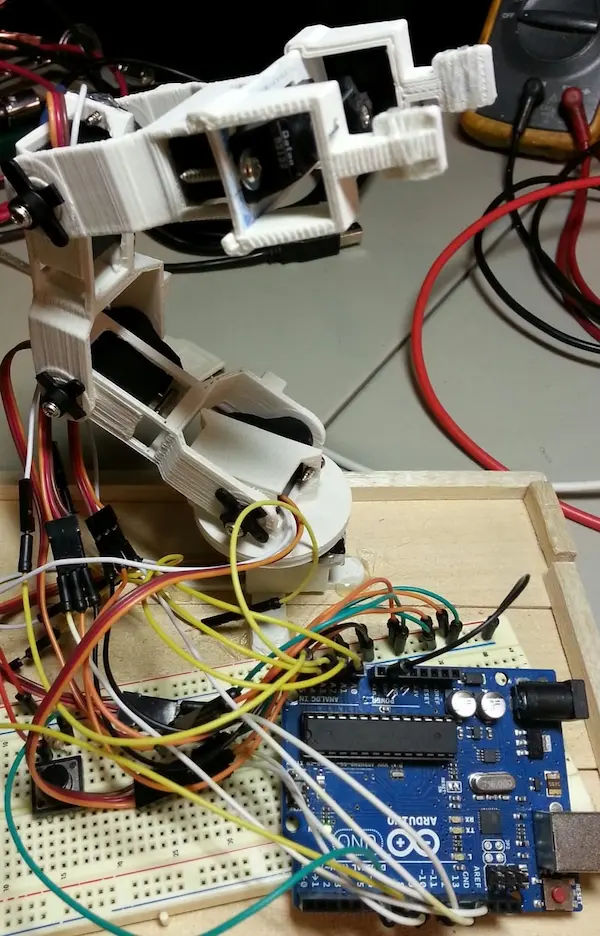

What is Robotics FFC Cable?
Robotics FFC cables are ultra-flex flat cables built for robot arms, AGVs and pick-and-place systems. They tolerate millions of tight bends, use PET/PI shielding against EMI, and keep power/data/control signals stable through moving joints and sensors, outlasting standard FFC in space-constrained, high-noise automation.
Where Are Robotics FFC Cables Used?
Robotics FFC Cables are widely used across various motion and control components in industrial, service, and collaborative robots. Below are the typical application subcategories where flexible flat cables ensure reliable and compact signal and power delivery.

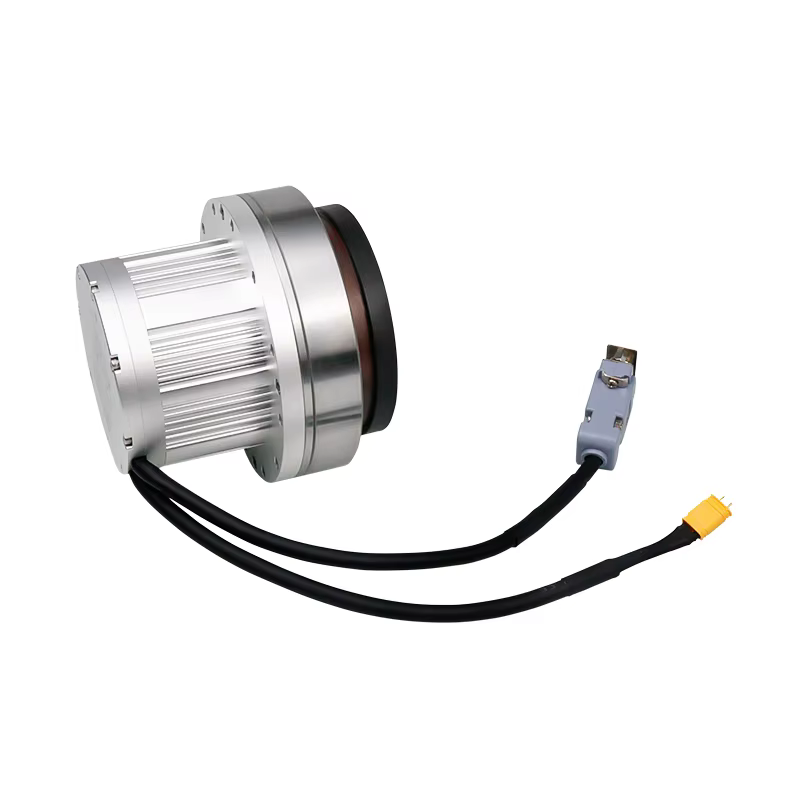

Robotic Arms FFC Cable
Used in multi-axis robotic arms for precise signal and motor drive control under high-flex movement.

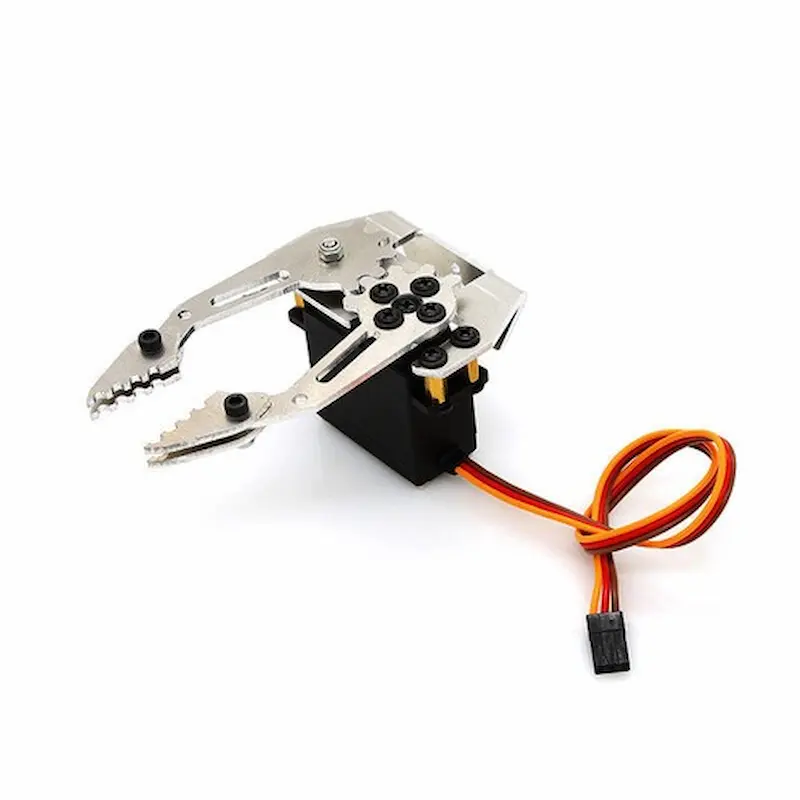

End Effectors & Grippers FFC Cable
Compact FFCs power and control the sensors and actuators inside end-of-arm tooling.

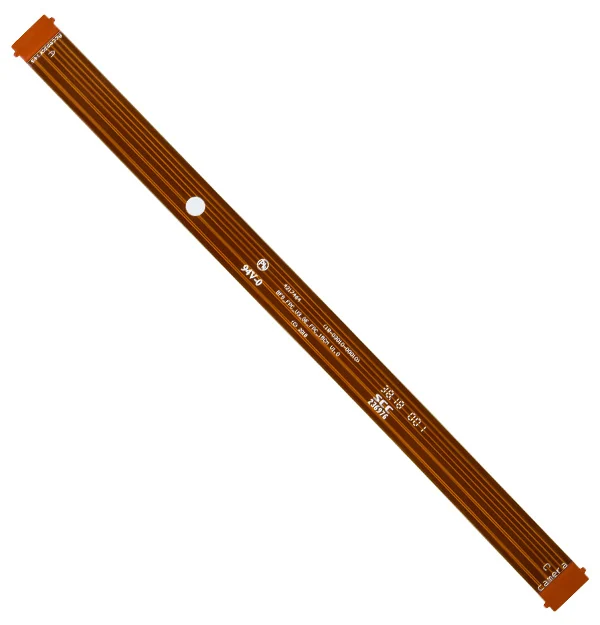

Robot Vision Modules FFC Cable
Connect high-resolution cameras and image sensors in robotic vision and inspection systems.

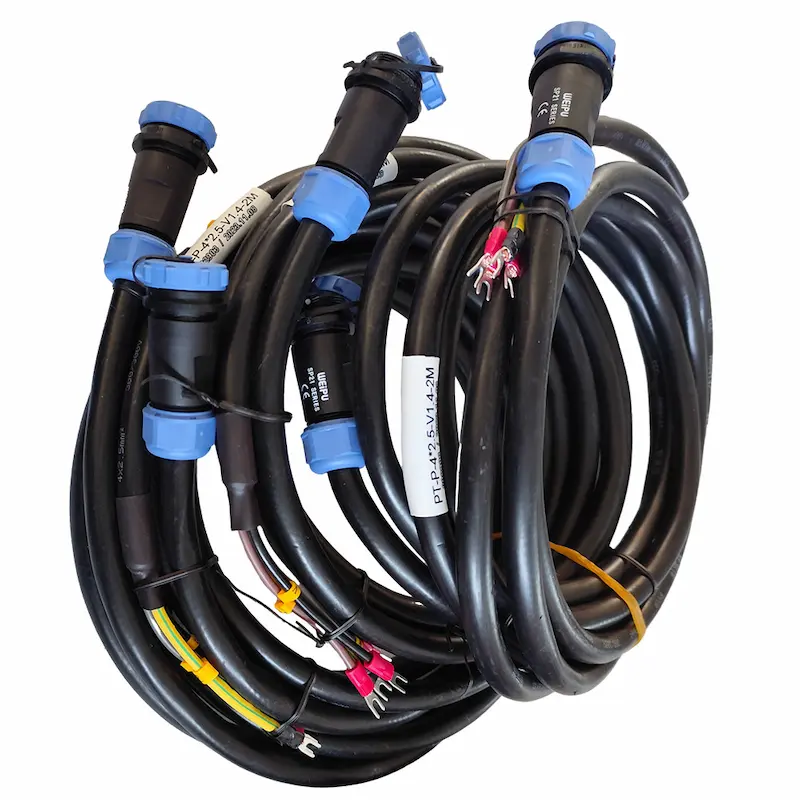

AGVs & AMRs FFC Cable
Used in autonomous mobile robots for connecting battery systems, LiDAR, and navigation modules.

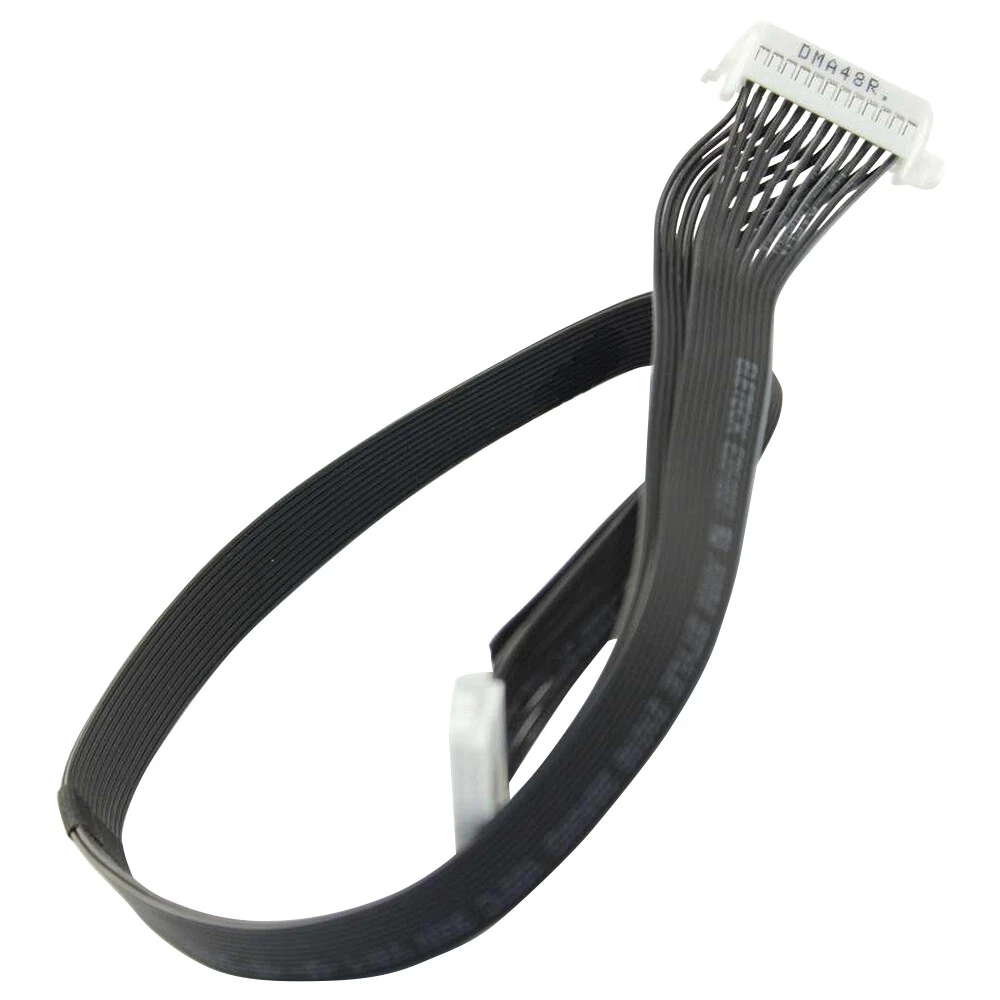

Joint Modules FFC Cable
Run through rotational joints to deliver clean signal in bend-heavy areas of articulated robots.
Control Panels & PCBs
Inside robot controllers and distribution PCBs, FFCs simplify internal wiring in tight enclosures.

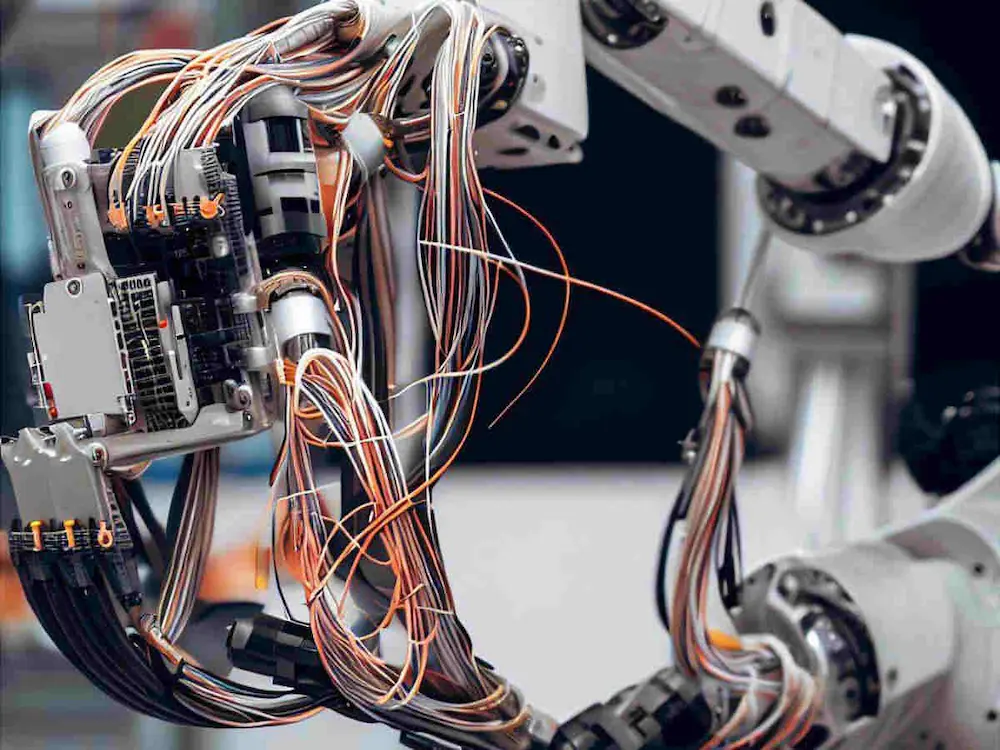

Common Wiring Challenges in Robotics —Solved with FFC
At YLS, we not only supply high-reliability FFCs but also collaborate with your design team to optimize cable routing, folding patterns, and connector mating for your specific robot architecture.
Cable Fatigue from Continuous Bending
FFC cables are engineered with ultra-thin, flexible structures and tight bend radii, enabling >5 million dynamic cycles without failure in moving joints.
Inconsistent Cable Routing in Prototyping
Custom-length FFCs with defined folding lines improve layout repeatability and simplify internal harness design in robotic prototypes or modular platforms.
Weight and Heat Accumulation in Fast-Moving Axes
FFCs weigh significantly less than round cables and dissipate heat more effectively due to flat geometry, making them suitable for high-duty cycles and tight spaces.
Connector Bulk or Assembly Difficulty
We offer FFCs pre-terminated with ZIF/LIF or high-density module connectors, simplifying integration and reducing assembly errors.
Let’s solve your cable bottlenecks → Contact our engineering team
Technical Capabilities
FFC Cable Specs for Robotics
- Engineered to exceed 20 million bending cycles for robotic arm and joint modules.
- Supports bend radii as low as 1mm for compact and continuous movement paths.
- Available with dual-shielding options to reduce interference in signal-critical systems.
- Ideal for weight-sensitive payloads and confined robotic interiors.
- Compatible with I-PEX, JST, Hirose, and other common connector systems.
- Support S-shape and multi-fold layouts without compromising signal integrity.
Quick Spec Summary:
| Parameter | Value Range / Options |
|---|---|
| Pitch | 0.5mm / 1.0mm / 1.25mm / 2.0mm |
| Conductor Type | Tinned copper / Silver-plated copper |
| Cable Structure | Type A / Type D / Custom foldable routing |
| Bending Radius | ≥ 1mm (dynamic), ≥ 0.5mm (static) |
| Flex Life | ≥ 20 million cycles (tested in robotic arm sim) |
| Temperature Resistance | -40°C to +105°C (special: up to +125°C) |
| EMI Shielding Option | Aluminum foil + ground trace / custom options |
| Rated Voltage | 30V / 60V / up to 100V for power modules |
| Current Capacity | Up to 1.5A per trace (depending on width/pitch) |
| Length Tolerance | ±0.2mm (customizable for compact routing) |
| Connector Compatibility | Hirose / JST / Molex / I-PEX or custom |
| Certifications | RoHS / REACH / UL 2651 / CE |
Custom Ribbon Cable Capabilities — Built to Your Specs
Your application may require more than just a standard pitch or length. That’s why we offer complete customization on all critical parameters — so your ribbon cable fits perfectly, functions reliably, and installs easily.
Whether you need just 50 pieces for a prototype or 50,000 for production, we can deliver with speed and precision.
1. Pitch & Conductor Configuration
Design the spacing and layout that fit your device’s constraints.
- Available pitches: 0.4mm / 0.5mm / 0.8mm / 1.0mm / 1.25mm
- 4 to 96 conductors
- Symmetrical or custom pin-out
2. Cable Length & Shape
Adapt the cable to your layout without compromising space.
- Lengths from 30mm to 1000mm+
- Straight, L-shape, Z-fold, or multi-branch
- Fold lines pre-creased for easy routing
3. End Termination Options
Seamless integration with your connectors or boards.
- Tinned or gold-flashed bare ends
- PET/PI stiffeners for ZIF sockets
- Solder tail, FPC-style, or custom header connector
4. Shielding & EMI Control
Protect signal integrity in sensitive environments.
- Aluminum foil or mesh shielding
- Ground tail or drain wire
- Optional double-shielded design
5. Surface & Insulation Customization
Improve durability, appearance, and signal performance.
- PET or PI insulation
- Conductor surface: tin-plated, bare copper, or gold
- Optional heat-resistant or flame-retardant materials
6. Punching & Mechanical Modifications
Built to fit into housings and tight enclosures.
- Punch holes, slots, notches for mounting
- Fold lines for compact 3D routing
- Peel tabs or extended tails
7. Labeling & Traceability
Simplify installation, QC, and inventory tracking.
- QR code / barcode / serial ID
- Printed position marks, logos, or terminal IDs
- Laser or ink marking options
8. Packaging Options
Fit your assembly line or ESD protocol.
- Bulk bag, tray, coil, or tape & reel
- Anti-static or moisture-proof packaging
- Custom labels or part numbers
Not sure which specs to choose? Our engineering team is ready to help. Ask an Engineer
Custom FFC Cable Workflow
At YLS, we simplify the path from idea to production. Whether you’re upgrading a product or building something new, our six-step process ensures speed, accuracy, and full customization for your flat flexible cable solution.
🧩 Step 1: Project Kick-off
Tell us about your needs: cable pitch, pin count, length, connectors, UL specs, shielding, fold lines—our team starts with the details that matter.
📐 Step 2: Engineering Proposal
We translate your specs into manufacturable designs. Expect drawing files and connector matching within 24–48 hours.
🧪 Step 3: Sample Fabrication
Once drawings are approved, we build samples in 3–5 working days, including precision cutting, labeling, and insulation options.
🧷 Step 4: Testing & Validation
You verify the sample in your device. We assist with adjustments, feedback loops, or connector matching as needed.
🔁 Step 5: Final Sign-off
Once the prototype is approved, we lock the design, confirm packaging and delivery terms, and prepare for production.
🚛 Step 6: Mass Production & Global Delivery
We initiate volume production and ship on time via express, air, or sea—wherever your facility is.
✨ Optional Add-ons:
Fold lines or pre-bent shaping
Custom labels or barcodes
Hole punching, notching, peel-tab finishing
Shielding and grounding features
Special packing and reel packaging options
Technical support for connector sourcing
ABOUT YLS
Reliable FFC cables factory integrated services
Yulian is a direct manufacturer of flat flexible cables (FFC), delivering precision wiring solutions trusted by global OEMs. With in-house tooling, rapid prototyping, and full customization capabilities, we help you go from concept to cable—fast, reliable, and to your spec.
We offer pitch options from 0.4mm to 1.25mm and core counts up to 96, with full support for folding, shielding, notching, punching, labeling, and custom assembly.
- Ultra-Fine Pitch, High Pin Count
- 48-Hour Custom Sample Delivery
- Foldable & Shielded Cable Options
- Expert Support for Complex Wiring
- ISO/IATF Certified Manufacturing
- 100% Electrical QC Before Shipment
- Low MOQ, Fast Turnaround
- 10+ Years Across Key Industries
Frequently Asked Questions
What types of robotic systems commonly use FFC cables?
FFC cables are widely used in industrial arms, collaborative robots (cobots), AGVs/AMRs, inspection robots, humanoid prototypes, and medical robotics. They are ideal for joints, vision modules, internal controllers, and rotating axes due to their flexibility and compactness.
Can YLS provide custom-length and shape FFC cables for articulated robotic arms?
Yes. We offer fully customized FFC cables with precise length, pitch, number of conductors, fold points, and connector orientation to match your robot’s moving paths and mechanical layout.
How many flex cycles can your FFC cables withstand in dynamic robotic applications?
Our high-durability FFC cables are rated for up to 5 million dynamic bending cycles at a minimum bend radius as low as 5mm, making them ideal for high-frequency movements in robotics.
Are your FFC cables shielded to prevent signal interference in robotic sensors?
Absolutely. We provide single-sided or double-sided EMI-shielded FFC cables using aluminum-mylar foil and ground traces, perfect for data transmission in camera, LiDAR, or sensor systems.
What is your minimum order quantity (MOQ) and lead time for robotics FFC cable prototypes?
Our MOQ for custom robotics FFC cables starts as low as 100 pcs. Prototype lead times are typically 7–10 days, while bulk production orders can be delivered in 2–3 weeks.
Do your robotics FFC cables comply with international safety and quality standards?
Yes. All our FFC products meet RoHS and REACH requirements. Upon request, we can provide UL-certified materials and full electrical and mechanical test reports for your project.
Chat with us now for your Custom needs. Chat on WhatsApp Now
More Solutions
Let’s Build Your Ideal FFC Cable — Fast Response Guaranteed
Whether it’s for foldable drones, camera gimbals, or onboard computing—our FFC solutions are designed to fly. Tell us what you need—we’ll build it.
