A ribbon wire cable is flat and bends easily. It has many wires next to each other in one layer. This special shape helps the ribbon cable fit in small spaces. It can also connect many places at the same time. Many electronics, computers, and machines use a ribbon wire cable. It helps make wiring inside fast and neat. Some industries like telecommunications, data centers, and car electronics use ribbon cable technology. It helps move data quickly and keeps connections strong.
Key Takeaways
- Ribbon wire cables are flat and bend easily. They fit in tight spaces. They help keep wires tidy and neat.
- These cables have many wires side by side. They can connect many things at the same time. This makes them good for computers, printers, and other devices.
- There are different ribbon cables. Some are standard, some are shielded, and some have colors. Each type works best in certain places or for certain jobs.
- Ribbon cables are simple to put in. They use special connectors. This helps stop wiring mistakes. It also makes fixing things faster.
- Ribbon cables work well for short spaces and gentle bends. Shielded and flex cables protect better. They last longer in loud or moving places.
Ribbon Wire Cable Structure
Flat Design

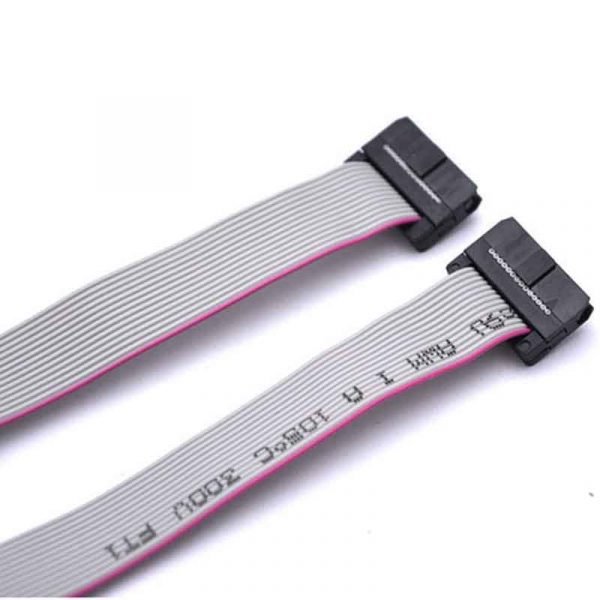

A ribbon wire cable is flat and wide. It looks like a thin strip, like a ribbon. This shape helps it fit into small spaces in computers. The cable bends easily. You can move it around corners or under parts.
Tip: The flat shape keeps wires neat and stops mess inside devices.
The flat design changes how signals move in the cable. Ribbon wire cables carry signals well for short distances. They work best at low frequencies. When return wires are between signal wires, they work better. At high frequencies or with lots of electrical noise, round cables protect signals more. Ribbon wire cables are best for short runs where you need flexibility and neatness.
Here is a table with common sizes for ribbon wire cables:
| Parameter | Value |
|---|---|
| Conductor Gauge | 28 AWG (stranded 7/36 strands) |
| Number of Conductors | 20 conductors |
| Cable Width | 26.92 mm |
| Insulation Thickness | 0.030 inches (extruded flame retardant PVC) |
| Pitch Between Conductors | 0.050 inches (1.27 mm) |
| Overall Cable Thickness | 3 mm |
| Voltage Rating | 300 V |
| Operating Temperature | -40°C to 105°C |
| Insulation Material | PVC (Polyvinyl Chloride) |
Parallel Conductors
Inside a ribbon wire cable, many wires run side by side. They stay in one layer. The wires do not twist or cross. Each wire carries its own signal. All wires stay parallel from end to end. This makes it easy to connect many places at once. That is why ribbon wire cables are used in computers and printers.
The space between wires is called pitch. Most ribbon wire cables use a pitch of 0.050 inches (1.27 mm). This matches the pins on standard connectors. Some cables use other pitches, like 1.00 mm or 2.54 mm, for different devices. The table below shows common wire spacing:
| Typical Conductor Spacing | Equivalent Metric Value | Common Application / Notes |
|---|---|---|
| 0.05 inch | 1.27 mm | Most usual spacing; matches IDC connector pin spacing |
| 1.00 mm | 1.00 mm | Used in floppy disk drive cables and some custom ATA cables |
| 2.54 mm (0.1 inch) | 2.54 mm | Standard pitch for many ribbon cables, aligns with two-row connectors |
Note: The parallel layout makes it easy to match with connectors. But it can pick up electrical noise if used for long distances.
Materials and Connectors
Manufacturers use special materials to make ribbon wire cables strong. The wires inside are usually copper. Copper carries electricity well. The insulation protects the wires and keeps signals apart. Common insulation materials are:
- PVC (Polyvinyl Chloride)
- Polyethylene
- Teflon (PTFE)
- Polyolefin
These materials help the cable resist heat, chemicals, and bending. Some cables use advanced materials for better performance. These are used in high-speed or high-temperature places.
Ribbon wire cables connect to devices with special connectors. The most common types in computers are:
- DB25 connectors
- DB9 connectors
- DB15 connectors
- Centronics 50 connectors
- IDE type connectors
- IDC 2×17 connectors
These connectors let the cable snap in fast and tight. The flat cable matches the connector pins. This makes installation easy and safe.
Tip: Manufacturers test ribbon wire cables by bending them and checking for breaks. They also check the insulation and connectors. This makes sure the ribbon wire cable will last a long time.
Ribbon Cable Types
Standard Ribbon Cables
A standard ribbon cable has many wires in a flat strip. The wires run next to each other. Most standard ribbon cables look gray. They work best for short distances. These cables do not have extra shielding. They fit well where EMI is not a problem. Many computers and printers use them inside. The flat shape lets you connect many wires at once.
Standard ribbon cables are light and bend easily. They cost less than shielded cables and are quick to install.
The table below shows the differences between standard and shielded ribbon cables:
| Feature | Standard Ribbon Cable (Unshielded) | Shielded Ribbon Cable |
|---|---|---|
| Construction | Multiple parallel conductors without additional shielding | Conductors surrounded by a conductive layer (foil or mesh) |
| Purpose | Used where EMI is not a significant concern | Protects against EMI and external interference |
| Flexibility and Weight | Lightweight and flexible | More robust and less flexible |
| Typical Use | Short distance, low EMI environments | High-speed, sensitive data transmission, high EMI areas |
| Cost | Cost-effective | Generally more expensive due to shielding |
Shielded Ribbon Cables
Shielded ribbon cables have a special layer around the wires. This layer can be foil or metal mesh. The shield blocks outside electrical noise. It keeps the signals inside safe. Shielded ribbon cables work best in places with lots of EMI. Factories and data centers use them often. These cables are thicker and bend less than standard ones. They cost more and need careful setup.
| Aspect | Shielded Cables | Unshielded Cables |
|---|---|---|
| EMI Protection | Has a conductive barrier that conducts noise to ground | No physical shield present |
| Noise Immunity | Better in high-EMI environments | Can perform well if designed properly |
| Installation Considerations | Heavier, less flexible, requires grounding | More flexible, easier to install |
| Risk Factors | Improper grounding can cause problems | Less risk of unwanted noise pickup |
| Typical Use Cases | Industrial, high-EMI areas | Office, low-EMI areas |
Bonded ribbon cable is a kind of shielded ribbon cable. The wires are stuck together with strong glue. This keeps the wires in place and makes the cable stronger. Bonded ribbon cable works well in tough places.
Color-Coded Ribbon Cables
Color-coded ribbon cables make wiring and repairs faster. Each wire has a different color or a stripe. The first wire often has a red or blue stripe. This shows where to start connecting the cable. Color coding helps match each wire to the right pin.
- Color-coded ribbon cables help stop mistakes when installing.
- The colors help people find and fix problems fast.
- A multimeter can test each wire for breaks or wrong spots.
- Notches and color stripes help avoid errors together.
- Color coding also helps keep cables neat and easy to track.
Rainbow ribbon cable is a popular color-coded ribbon cable. Each wire is a bright color, so it is easy to see. Bonded ribbon cable can also have rainbow colors for more clarity. Rainbow ribbon cable is used in test gear and control panels.
Color coding in ribbon cables saves time and helps stop mistakes when installing or fixing cables.
Ribbon Cable Applications
Computers and Electronics
Ribbon cables are important inside computers and electronics. Engineers use them to connect drives to circuit boards. The flat shape lets cables fit in small spaces. This is good for devices that are not big. Each wire runs next to the others. This keeps connections neat and stops wires from crossing. Color-coded wires help people find the right wire fast. This makes repairs easier.
Insulation displacement connectors (IDC) work with ribbon cables. They make connections fast and strong. This way, wires do not break or wear out. Many wires can be connected at once. This saves time when building or fixing devices.
Here is a table that shows how ribbon cables are used:
| Device Type | Typical Ribbon Cable Use |
|---|---|
| Desktop Computers | Internal connections for drives |
| Printers | Linking print heads and control boards |
| Scanners | Connecting sensors and logic boards |
| Smart Appliances | Wiring control panels and displays |
Consumer Devices
Ribbon cables are used in phones, TVs, and audio gear. They let many signals move at the same time. This helps send data inside the device. The flat shape keeps wires in place. This stops mistakes and shorts. It makes devices work better.
- Computers, phones, and TVs use ribbon cables inside.
- Hard drives and CD drives need ribbon cables for wiring.
- Ribbon cables bend easily, so they are easy to install.
- Color-coded wires help people find wires quickly.
- Ribbon cables let many wires connect in small spaces.
Ribbon cables in consumer devices save space and help repairs. The flat shape makes it easy to see each wire. This helps fix problems faster. Technicians can unplug and plug in cables quickly. This means less waiting time.
Industrial Equipment
Factories and machines use ribbon cables for wiring. These cables connect panels, sensors, and test tools. The neat layout helps send signals well. This is important for machines that need to work by themselves.
- Factories use ribbon cables to connect sensors and controls.
- Test tools use ribbon cables to send signals right.
- The flat shape saves space in control boxes.
- Ribbon cables can handle shaking and bumps if made strong.
Ribbon cables help fix machines in factories. Their shape makes it easy to move and find wires. Technicians can spot and change bad wires fast. This keeps machines working well.
Ribbon cables have many good points. They keep wires neat, send data well, and are easy to fix. The flat, bendy shape fits in small places. They let many wires connect at once. This is why ribbon cables are used in computers, devices, and machines.
Ribbon Cables vs. Other Cables
Ribbon Cables vs. Flat Cables
Flat cable and twisted flat ribbon cable both have wires in a row. This design lets them fit inside small devices. Flat cables use soft copper and bendy covers. This helps them bend and fold without breaking. Twisted flat ribbon cable is almost the same but has twists. The twists help stop signal problems. Flat cables can bend more than round cables. This makes them good for tight spots.
Flat cables and ribbon cables are alike in some ways. But they are not the same in how they bend and last. Flat cables are stronger when pulled. They can bend more times if they have the same number of wires. You can change the number and space of wires in flat cables. This makes them easier to put in and saves space. Flat cables also fight rust and cold better because of their materials.
| Feature | Flat Cable | Twisted Flat Ribbon Cable |
|---|---|---|
| Conductor Arrangement | Parallel | Parallel with twists |
| Flexibility | High | Moderate |
| Bending Radius | Small | Small |
| EMI Resistance | Moderate | Improved |
| Installation | Easy | Easy |
Flat cables are good for places that do not move much. Twisted flat ribbon cable helps stop signal problems even more.
Ribbon Cables vs. Flexible Cables
Flex cables can bend and fold many times without breaking. Flexible ribbon and flex cables have thin wires stuck to plastic. This makes them great for parts that move a lot. Flex cables can bend thousands of times. Ribbon cables cannot bend over and over. Flex cables also do not get hurt by water or chemicals as much as ribbon cables.
Flex cables last longer when bent again and again. If you bend ribbon cables too much, they can break. Flex cables use thin wires and special covers. This stops rubbing and keeps them from getting stiff. This helps flex cables work longer in things that move, like laptop screens and printers.
Flex cables also cost less when made in big amounts. Making them in places like China saves money. Big orders make flex cables cheaper for lots of devices. But the price depends on how many you buy and what you need.
- Flex cables bend and fold many times.
- Flex cables do not get hurt by water or chemicals.
- Flex cables last longer when bent a lot.
- Flex cables are good for moving parts.
- Flex cables cost less when made in large numbers.
Flex cables are best for things that move a lot and need to last.
Ribbon Wire Features
Advantages
Ribbon wire has many good points for electronics. Its flat shape lets engineers fit lots of wires in small spaces. This makes wiring neat and tidy. Ribbon wire bends and folds without breaking. It is great for tight spots in computers and cars. The flat cable can stack or layer to save space.
- Ribbon wire works with IDC connectors for fast assembly. Workers do not need to strip or solder wires, so they finish faster and make fewer mistakes.
- The flat shape stops tangling and helps air move, which keeps devices cool.
- Ribbon wire is cheap and used in many products. Makers can change the pitch and number of wires for each job.
- The cable bends easily and does not break when folded. This is important in small systems.
- Ribbon wire is good for mid-speed signals and can have shielding for better signals.
- The flat look makes products look nice and helps with repairs.
- Ribbon wire is strong for wiring inside computers and machines.
- Flex cables are like ribbon wire. Both bend and fit in small places. Flex cables last longer when bent many times, so they are good for moving parts.
- Flex cables also fight water and chemicals better than ribbon wire. This helps in tough places.
Ribbon wire and flex cables help engineers build small, neat, and good electronic systems.
Disadvantages
Ribbon wire also has some problems to think about. The flat shape can get hurt by sharp edges or too much bending. Over time, connector blades may get loose and cause bad connections. Strain relief can break when you push the cable in, especially if it is weak.
- Ribbon wire can get damaged strands, which may cause shorts or open wires.
- Copper tips can get rusty, which raises resistance and causes problems.
- The insulation can crack from old age, heat, or chemicals.
- Sharp edges can cut the cable and make wires open.
- If wires are not lined up right, connections can fail.
- Glue inside IDC connectors can go bad and cause insulation trouble.
- Ribbon wire gets more EMI than shielded cables. In noisy places, signals may get worse.
- Shielded cables block EMI better but cost more and bend less.
- Flex cables bend better than ribbon wire. Ribbon wire can break if bent a lot, but flex cables last longer in moving parts.
| Cable Type | EMI Protection | Durability in Moving Parts | Cost |
|---|---|---|---|
| Ribbon wire | Low | Moderate | Low |
| Shielded cable | High | Moderate | High |
| Flex cables | Moderate | High | Low-Med |
People should pick ribbon wire or flex cables based on where and how they will use them.
A ribbon wire cable has flat wires that run side by side. This helps make neat and strong connections in small spaces. There are different types, like standard, shielded, and color-coded. These types work in computers, electronics, and factories. Ribbon wire cables are easy to put in and help stop wiring mistakes. They also keep signals strong. When picking a ribbon wire cable, think about how much it bends, the space between wires, and if it is safe for the environment. These cables save space and let you connect many wires at once. But they can block air and need careful use to last a long time.
FAQ
What is the main purpose of a ribbon wire cable?
A ribbon wire cable connects many electronic parts at once. It keeps wires neat and flat. This cable works well inside computers, printers, and other devices.
Can a ribbon wire cable carry power and data?
Yes, a ribbon wire cable can carry both power and data. Each wire in the ribbon can have a different job. Some wires send signals, while others provide power.
How do you connect a ribbon wire cable to a device?
Most ribbon wire cables use IDC connectors. These connectors press onto the cable and make contact with each wire. This method creates a fast and secure connection.
Are ribbon wire cables flexible?
Ribbon wire cables bend easily. Their flat shape lets them fit around corners and inside tight spaces. However, too much bending can damage the wires.
What should you check before using a ribbon wire cable?
Always check the number of wires, the pitch (spacing), and the connector type. Make sure the cable matches the device’s needs. This helps prevent connection problems.
