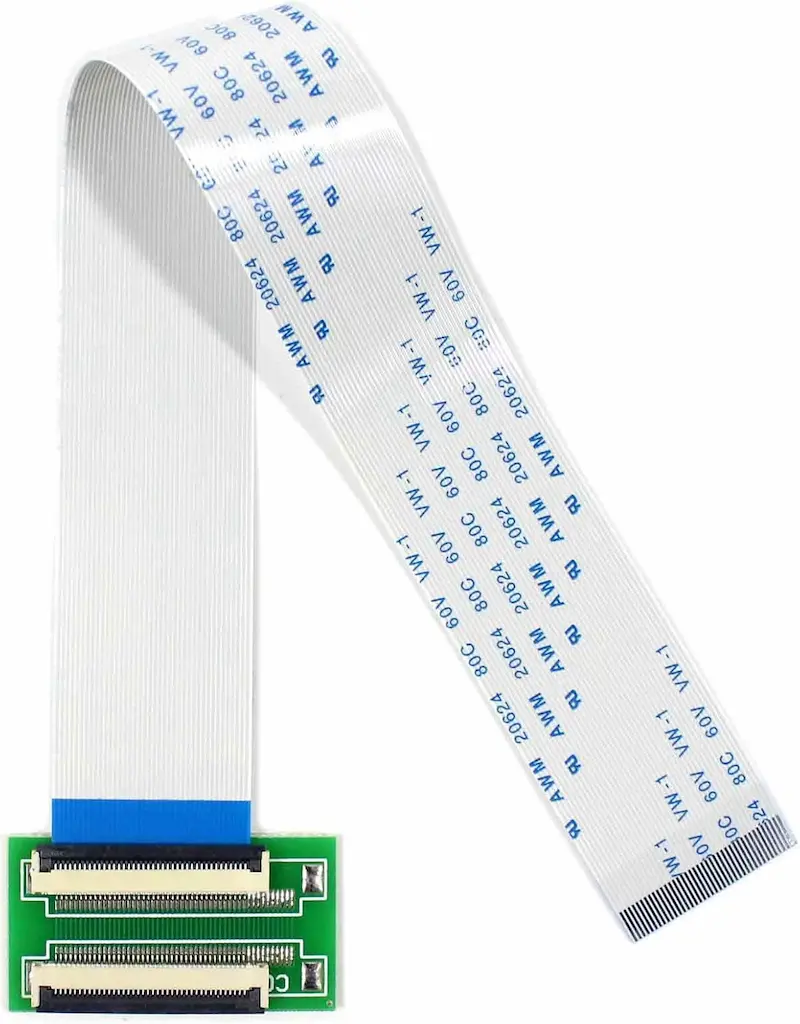

ZIF FFC Cable
A ZIF FFC (Zero Insertion Force Flexible Flat Cable) is a flat ribbon-style cable designed for use with ZIF connectors, enabling reliable, tool-free connections in compact electronic devices. Ideal for displays, touch panels, and cameras, ZIF FFC cables offer low insertion stress, high flexibility, and customizable pitch, length, and pin configurations.
| FFC Flat Cable | Specification |
|---|---|
| Pitch | 0.5mm, 0.8mm, 1.0mm, 1.25mm, 1.27mm, 2.0mm, 2.54mm |
| Conductor | 0.035×0.3, 0.05×0.5, 0.1×0.65, 0.05×0.5 |
| Insulation | 0.043, 0.06, 0.1, 0.08 |
| Reinforcing Tape | 0.16, 0.225, 0.25 |
| Blue Stiffener | 4–8mm & 3–5mm |
| Contact Sides | Same side & opposite side contact |
| Pin Count | 4 to 96 pins (customizable) |
| Cable Length | 20mm – 10,000mm (customizable) |
| Cable Type | Type A, B~H, I (custom options) |
| Service | OEM / ODM available |
| Certification | ISO9001:2008, RoHS compliant |
| MOQ | 50 pcs |
Ask us about sample support.
Product Categories &
Engineering Solutions
ZIF FFC cables are built for compact devices that use low-insertion-force connectors. We offer straight, reversed, folded, and dual-tail types—ideal for displays, cameras, sensors, and touch modules. With options like gold plating and notched ends, our ZIF cables fit tight spaces and ensure reliable board-to-board connections.

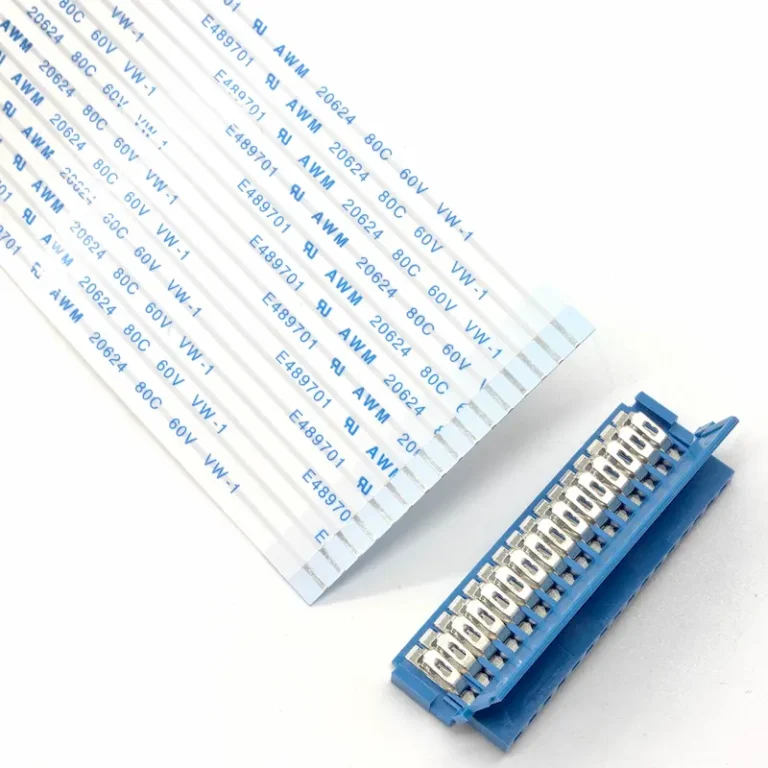

Standard (Straight) ZIF FFC Cable
- Pitch: 0.3mm / 0.5mm / 1.0mm
- Pins: 6–60
- RoHS-compliant PET insulation with PI stiffener optional
This is the most common ZIF cable layout, with a straight terminal end designed for insertion into push-lock or flip-lock connectors. It fits standard 0.5mm or 1.0mm pitch connectors from Hirose, JAE, or Molex. Available in top or bottom contact formats.

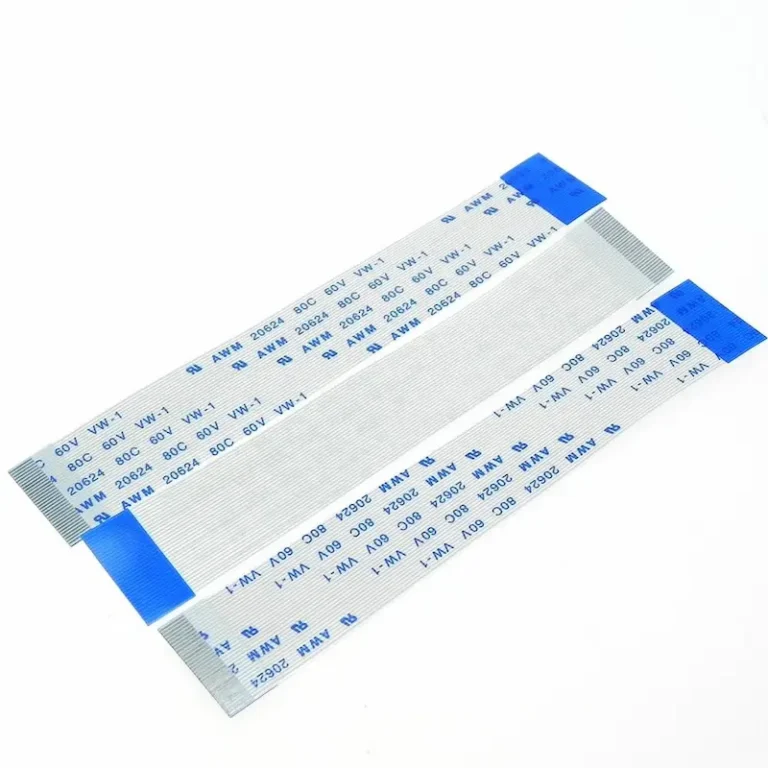

Reverse Contact ZIF FFC Cable
- Available in single- or double-sided layouts
- Standard pitch: 0.5mm or 1.0mm
- Fully customizable trace routing and signal mapping
This FFC flips the conductor side across the cable thickness, so that signal traces appear on the bottom instead of the top (or vice versa). Compatible with connectors requiring reverse-side mating.

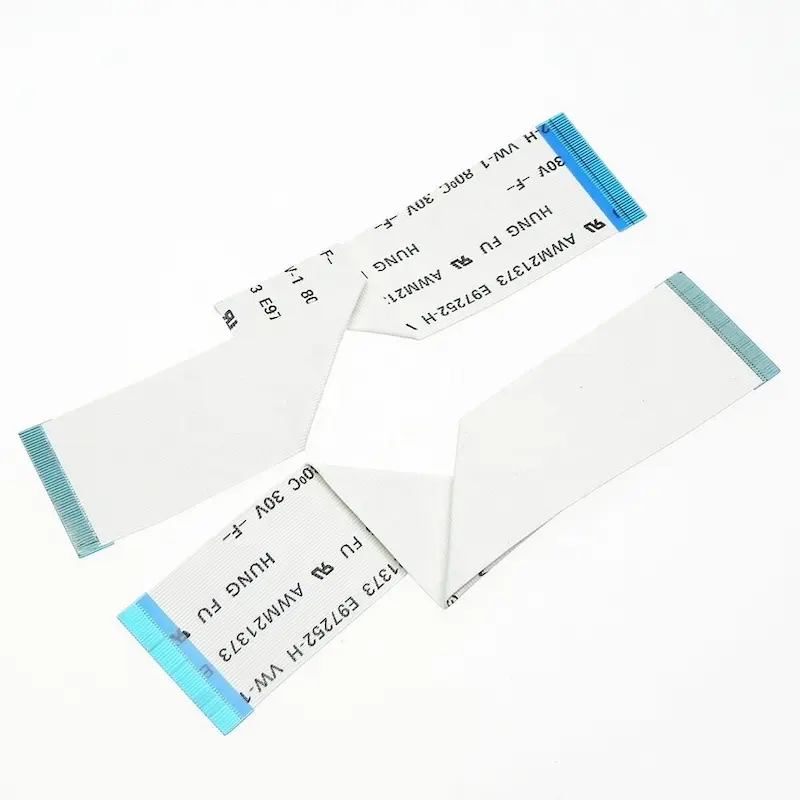

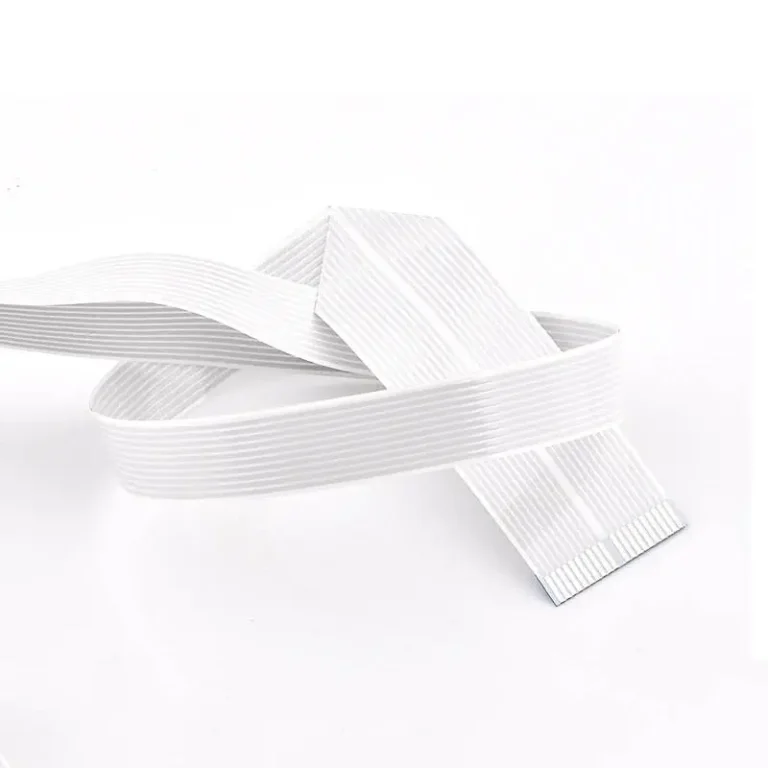

Pre-Folded (Side-Bent) ZIF FFC
- Factory-set bend (L, Z, or U shape)
- Min. bend radius: 1.5–3mm (depends on pitch)
- PI/PET stiffener at tail for added grip and alignment
The cable is pre-folded in production to reduce stress and optimize tight installation paths. This ensures reliable contact without needing sharp bends near the connector.
Contact our engineer for drawing review and sample proposal.
ZIF Cable Selection Table – Choose What Fits Your Project
| Cable Type | Pitch Range | Pin Count | Typical Use Case | Special Feature |
|---|---|---|---|---|
| Straight-Type ZIF FFC | 0.3–1.25mm | 6–60 pins | General board-to-module connection (e.g. display, touch) | Standard straight tail for ZIF sockets |
| Reversed-Conductor ZIF FFC | 0.5 / 1.0mm | 6–50 pins | Boards with bottom-mounted or reversed connectors | Flipped conductor layout (top ↔ bottom) |
| Pre-Folded (Side-Bent) ZIF | 0.5 / 1.0 / 1.25mm | 10–60 pins | Space-constrained or vertical insertion paths | Factory Z-fold, U-fold, or L-fold for tight routing |
ZIF Cable Customization Process –
From Spec to Production in 6 Steps
Not all EMI problems are the same — and neither are your cable needs. At YLS, we help you configure the shielding structure, grounding layout, bend direction, and connector type that match your specific electronic environment. Whether you’re routing MIPI over 300mm or suppressing noise near a motor driver, we build cables that work — in your real-world conditions.
1. Submit Requirements
Share your ZIF connector type, pitch, pin count, contact orientation (top/bottom), cable length, layout constraints, and any special tail features (e.g., stiffener, notch, gold plating).
2. Tail Design & Cable Layout
We help define the optimal tail structure — straight, folded, reverse-conductor, or dual-ended — and ensure full compatibility with your board connector and assembly space.
3. Engineering Drawing & Quotation
Within 48 hours, we’ll provide a complete drawing with spec confirmation and a clear quotation based on volume, material, and any optional add-ons.
4. Sample Production
Samples are delivered within 5–7 working days, fully prepared for testing — trimmed, reinforced, and ready to fit into your ZIF socket.
5. Validation & Feedback
You verify mechanical fit and electrical performance. If adjustments are needed, we refine the spec and resample quickly for final approval.
6. Mass Production & Delivery
Once confirmed, we begin production with 100% QC and deliver globally by express, air, or sea, depending on your schedule and Incoterms.
Faster assembly time
Better fit and fewer errors
Ready for production line
Custom-made to your specs
Send Us your drawing or photo — we’ll make a sample that fits.
